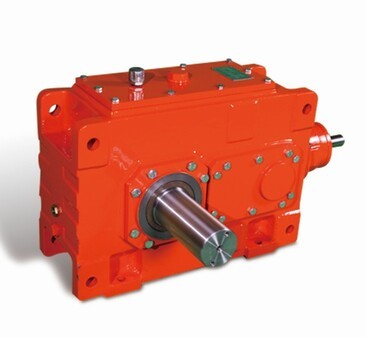

Guomao PV series general gearbox

The new type hard tooth surface high-power transmission has a large torque range, and adopts the modular design of the unit structure, which can be installed horizontally or vertically. There are solid shaft, hollow shaft and shrink disk hollow shaft output. It has a wide range of applications. It adopts high-strength and high-quality alloy steel for carburizing and quenching. It has the advantages of high-efficiency and long-life gears, high allowable axial and radial loads, low operating noise, high reliability, and compact structure.

Product number:

P、Vseries

category:

Product consultation:

Product Description

Overview :
   The new type hard tooth surface high-power transmission has a large torque range, and adopts the modular design of the unit structure, which can be installed horizontally or vertically. There are solid shaft, hollow shaft and shrink disk hollow shaft output. It has a wide range of applications. It adopts high-strength and high-quality alloy steel for carburizing and quenching. It has the advantages of high-efficiency and long-life gears, high allowable axial and radial loads, low operating noise, high reliability, and compact structure.





Features:

◆ P and V gearboxes adopt general design scheme, which can be transformed into industry-specific gearboxes according to customer needs.

◆ Realize parallel axis, orthogonal axis, vertical and horizontal general box, reduce the types of parts and increase the specifications and models.

◆ Adopt sound-absorbing body structure, large box surface area and large fan, cylindrical gear and spiral bevel gear all adopt advanced tooth grinding technology, so that the temperature rise of the whole machine, the noise reduction, the reliability of operation are improved, and the transmission power is improved. increase.

◆ Input mode: motor connection flange, shaft input.

◆ Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk connection, hollow shaft with spline connection, solid shaft with spline connection and solid shaft with flange connection.

◆ Installation method: horizontal, vertical, swing base, torsion arm.

◆ P, V series products have 3~26 type specifications, the number of deceleration transmission stages is 1~4, and the speed ratio is 1.25~450.

◆It can be combined with R/K/S series to obtain larger transmission ratio.
